The Anatomy of a Watch
We make things that work better and last longer. Our products solve real problems with clean design and honest materials.
Discover the complete anatomy of a watch, from the case, crystal, crown and dial to the mainspring, gear train, escapement, balance wheel, rotor and complications.
Calcutta Watch Company | Kripanti Maity
A Complete Guide to Every Essential Watch Part — From the Crystal to the Balance Wheel
A watch may appear deceptively simple.
Look at one from the outside and you see a dial, a pair of hands, perhaps a seconds hand, a crown and a bracelet wrapped around the wrist.
But beneath that apparently simple exterior lies an extraordinarily sophisticated machine.
A traditional mechanical wristwatch can contain well over a hundred individual components, each performing a specific task. A basic mechanical movement is generally organised around a winding system, barrel, gear train, escapement, regulating organ and display mechanism.
Some components store energy.
Some transmit it.
Some regulate it.
Some reduce friction.
Some protect the mechanism.
And some simply allow the wearer to read the result.
Together, they transform stored energy into something remarkably useful:
the measurement of time.
This is the anatomy of a watch.
What Exactly Is a Watch?
At its most fundamental level, a watch is a portable timekeeping instrument designed to indicate the passage of time.
Traditional mechanical watches accomplish this entirely through mechanical energy and carefully controlled motion. There is no battery, microprocessor or electronic timing circuit in a conventional mechanical movement. Instead, energy stored in a mainspring is transmitted through a gear train and regulated by an escapement and oscillating balance.
Quartz watches use a completely different principle.
A battery supplies electrical energy to a quartz oscillator and electronic circuit, which generates a highly stable frequency used to regulate the display.
Automatic watches sit somewhere between the traditional and modern worlds: they are still mechanical watches, but a rotating weight called a rotor winds the mainspring using the motion of the wearer's wrist.
So, before learning individual components, it helps to understand the three major movement families.
The Three Basic Types of Watch Movement

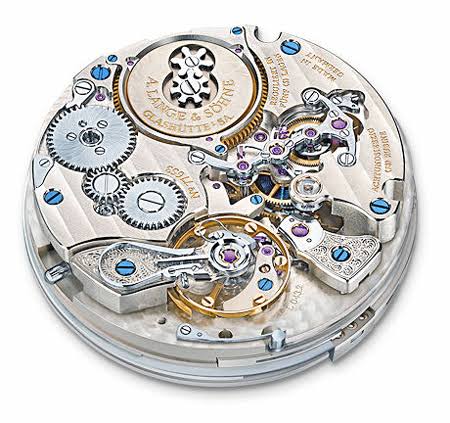

Mechanical — Manual Winding
A manual-winding watch is powered by a mainspring that must be wound by the wearer.
Turning the crown winds the mainspring.
As the spring gradually unwinds, it releases energy through the movement.
The gear train transmits that energy, the escapement regulates its release, and the hands display the passing time.
Manual winding is one of the purest expressions of traditional mechanical horology because the wearer directly interacts with the mechanism every time the watch is wound.

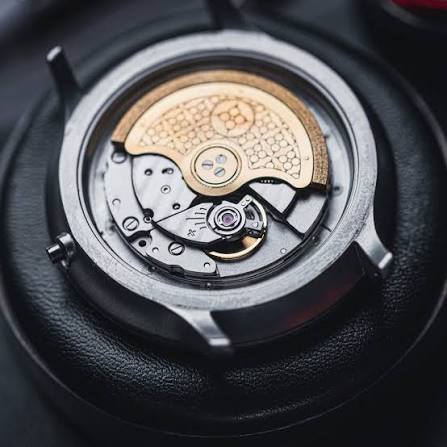

Mechanical — Automatic
An automatic watch is also entirely mechanical.
The difference is the addition of a rotor, a weighted component that swings as the watch moves on the wrist. That movement drives the winding system, which replenishes energy in the mainspring.
The watch therefore winds itself while being worn.
If left unworn for long enough, however, the stored energy will eventually run out and the watch will stop.
Quartz
Quartz watches use a battery-powered electronic system rather than a mechanical escapement.
A quartz crystal oscillates at a very stable frequency, and electronic circuitry uses that frequency as a reference for timekeeping.
Quartz technology dramatically changed watchmaking because it allowed watches to become highly accurate, comparatively inexpensive and extremely low-maintenance.
Yet the mechanical watch survived.
Why?
Because a mechanical watch is not merely a time display.
It is a machine.
The Exterior of a Watch
Before opening a watch, let's begin with everything you can see.
1. Case
The case is the protective body of the watch.
It surrounds and protects the movement, dial and hands from dust, moisture, shocks and everyday contact.
Watch cases are commonly manufactured from materials such as stainless steel, titanium, ceramic, precious metals and various modern alloys.
The case also determines much of a watch's physical character.
Its diameter, thickness, shape, finishing and proportions strongly influence how the watch feels on the wrist.
A case can be:
Round.
Square.
Rectangular.
Cushion-shaped.
Tonneau-shaped.
Or almost entirely unconventional.
The case is essentially the watch's architecture.
2. Bezel
The bezel is the ring surrounding the crystal and dial.
On a simple dress watch, the bezel may be thin and purely aesthetic.
On a sports or diving watch, it may become functional.
A rotating bezel can measure elapsed time, calculate certain intervals or, depending on its design, provide a reference for diving.
Some bezels are fixed.
Some rotate in both directions.
Some rotate only counter-clockwise for diving safety.
Some carry tachymeter scales.
Others may contain precious stones.
The bezel is therefore both a design element and, in many watches, an instrument.
3. Crystal
The crystal is the transparent protective cover above the dial.
Its primary purpose is to protect the dial and hands.
Three materials are particularly common:
Acrylic / Hesalite
Traditional plastic-based crystal. It is relatively easy to scratch but can often be polished and has a characteristic warmth.
Mineral Crystal
Hardened glass offering greater scratch resistance than acrylic at generally lower cost than sapphire.
Sapphire Crystal
Synthetic sapphire is extremely hard and highly scratch-resistant, making it a popular choice in modern watches.
Some crystals are flat.
Others are domed.
Vintage watches often feature beautifully curved acrylic crystals, while contemporary high-end watches frequently use sapphire.
The crystal is effectively the watch's window into time.
4. Dial
The dial is the face of the watch.
It is the surface from which the wearer reads the time and other indications.
A dial may contain:
Hour markers.
Minute tracks.
Applied indices.
Printed numerals.
Logo.
Date aperture.
Sub-dials.
Power-reserve display.
Moonphase.
Chronograph scales.
Tachymeter scales.
GMT indications.
The dial is often the most visually expressive component of the watch.
It can be simple and minimalist or extraordinarily complex.
For collectors, the dial can also be one of the most important determinants of a vintage watch's value.
5. Hands
The hands translate the movement's mechanical rotation into readable time.
The most familiar configuration contains:
Hour hand
Shorter and slower-moving.
Minute hand
Longer and completes one revolution every hour.
Seconds hand
Typically thinner and completes one revolution every minute on a conventional central-seconds watch.
Different hand designs carry different names and personalities.
Baton.
Dauphine.
Sword.
Leaf.
Cathedral.
Breguet.
Alpha.
Syringe.
Snowflake.
The hands may look decorative, but their proportions are carefully considered for legibility.
6. Hour Markers and Indices
Markers indicate the positions around the dial.
They can be printed or applied.
Common forms include:
Arabic numerals.
Roman numerals.
Baton indices.
Dots.
Triangles.
Diamonds.
Geometric markers.
On sports watches, markers are frequently coated with luminous material to improve visibility in darkness.
7. Crown
The crown is one of the most important external components.
It is the control interface between the wearer and the movement.
Depending on the watch, the crown can:
Wind the movement.
Set the time.
Set the date.
Adjust another function.
Interact with a GMT mechanism.
The crown is connected to the movement through the stem.
On a manual mechanical watch, rotating the crown winds the mainspring.
On an automatic watch, manual winding is generally also possible through the crown.
8. Crown Guards
Some watches feature protective structures around the crown.
These are called crown guards.
They are particularly common on sports, military-inspired and dive watches.
Their purpose is straightforward:
protect the crown from accidental impacts.
9. Lugs
The lugs are the extensions of the case that connect the watch to its strap or bracelet.
They may appear simple, but lug design has an enormous effect on wrist presence.
Long lugs can make a watch appear larger.
Short, curved lugs can make a larger case wear more compactly.
Integrated lugs can visually merge the bracelet with the case.
The distance between the lugs is generally called lug width or lug-to-lug spacing, depending on the measurement being discussed.
10. Spring Bars
A spring bar is a small spring-loaded metal bar that usually connects a removable strap or bracelet to the watch lugs.
Despite its tiny size, it performs a critical job.
It keeps the strap attached to the watch.
Spring bars are simple, inexpensive and easy to overlook — until one fails.
11. Strap
The strap is the flexible component that secures the watch to the wrist.
Common materials include:
Leather.
Rubber.
Nylon.
Fabric.
Textile.
Silicone.
Exotic leather.
Different straps dramatically change the personality of the same watch.
A leather strap can make a sports watch feel elegant.
A rubber strap can make a dressier watch feel contemporary.
A NATO-style textile strap can create a military character.
12. Bracelet
A bracelet is a metal wristband constructed from multiple links.
Common bracelet styles include:
Oyster.
Jubilee.
President.
Beads-of-Rice.
Integrated bracelets.
Bracelets can be made from stainless steel, titanium, precious metals and other alloys.
A bracelet also contains its own components, including links, screws or pins, end links, clasp and adjustment mechanisms.
13. Clasp
The clasp secures the bracelet or strap around the wrist.
Common designs include:
Tang buckle.
Pin buckle.
Deployant clasp.
Butterfly clasp.
Fold-over clasp.
Push-button clasp.
A good clasp must provide security while remaining comfortable.
On a luxury watch, clasp engineering can be almost as sophisticated as the movement itself.
14. Caseback
Turn the watch over and you reach the caseback.
It closes the rear of the case and protects the movement.
There are several common types.
Solid caseback
The movement is completely hidden.
Exhibition caseback
A transparent window allows the wearer to view the movement.
Screw-down caseback
The caseback screws into the case and is commonly used to improve water resistance.
For mechanical-watch enthusiasts, an exhibition caseback can transform the watch from a sealed object into a visible machine.
15. Gaskets
Gaskets are sealing components used around areas such as the crystal, caseback and crown.
They help prevent water and dust from entering the case.
They are usually made from elastomeric materials such as rubber or synthetic compounds.
Over time, gaskets can deteriorate.
That is one reason water resistance is not necessarily permanent.
Inside the Watch: The Movement
Now we reach the real engine.
The internal mechanism of a mechanical watch is called the movement or calibre.
The movement contains the components responsible for storing energy, transmitting energy, regulating energy and displaying time. The Federation of the Swiss Haute Horlogerie broadly divides a mechanical movement into winding, barrel, wheel train, escapement, regulator and display systems.
16. Mainplate
The mainplate is the fundamental structural foundation of the movement.
Think of it as the movement's floor.
Other components are mounted to it.
Jewels, wheels, bridges, springs and other mechanisms all depend on the mainplate for positioning.
Precision matters enormously.
The tiny holes and mounting points must be positioned accurately because the wheels need to interact at exact distances.
17. Bridges
Bridges sit above the mainplate and support various components.
They hold wheel pivots in position and provide structural stability.
Depending on the movement architecture, there may be separate bridges for:
The barrel.
Gear train.
Balance.
Escapement.
Automatic winding system.
Different watchmaking traditions have different bridge designs.
Swiss movements may use several individual bridges, while traditional German movements may employ a three-quarter plate.
The architecture becomes part of the watchmaker's visual signature.
18. Barrel
The barrel is the container that houses the mainspring.
It is essentially a drum-like component.
The mainspring is wound inside it and gradually releases energy.
The barrel transfers that energy to the gear train.
19. Mainspring
The mainspring is the watch's energy reservoir.
It is a long, thin strip of spring material wound into a coil.
When the watch is wound, energy is stored in the spring.
As it unwinds, it releases torque.
That torque drives the movement.
A useful way to think about it is:
Mainspring = battery of a mechanical watch.
The difference is that a mainspring stores mechanical energy rather than electrical energy.
20. Ratchet Wheel
The ratchet wheel forms part of the winding system.
It transfers the winding action toward the mainspring barrel and works with the winding mechanism to secure the stored energy.
It is one of the components you may encounter when looking at the top side of a traditional mechanical movement.
21. Click and Click Spring
The click mechanism prevents the mainspring from unwinding in the wrong direction during winding.
The click engages with the ratchet wheel.
The click spring provides the necessary force.
Together, they create the characteristic ratcheting sensation and sound associated with winding many mechanical watches.
22. Gear Train / Wheel Train
The gear train is the transmission system of the watch.
It carries energy from the mainspring toward the escapement.
But it does something even more important.
It converts the relatively slow rotation of the barrel into the carefully calculated rotational speeds required for the watch's indications.
A conventional train includes wheels such as:
Centre wheel
Third wheel
Fourth wheel
Escape wheel
The exact architecture varies between movements.
23. Centre Wheel
The centre wheel occupies a central position in many traditional movement architectures.
It is directly driven by the barrel and commonly makes one complete revolution per hour in a conventional mechanical watch.
That makes it fundamental to the motion of the minute hand.
The centre wheel therefore forms one of the key links between the movement and the visible display.
24. Third Wheel
The third wheel transfers energy from the centre wheel toward the fourth wheel.
It is an intermediate component, but its role is essential.
Without this carefully calculated gear relationship, the movement could not transfer energy efficiently through the train.
25. Fourth Wheel
The fourth wheel is especially important in a conventional central-seconds movement.
It generally rotates once per minute and therefore drives the seconds hand.
Its position and gearing can vary depending on movement architecture and whether the watch has central or subsidiary seconds.
26. Escape Wheel
The escape wheel is the final wheel in the main gear train before the regulating mechanism.
Its specially shaped teeth interact with the pallet fork.
Instead of allowing the gear train to spin freely, the escapement repeatedly locks and releases the escape wheel.
This is one of the most ingenious aspects of mechanical watchmaking.
27. Escapement
The escapement is the mechanism that controls the release of energy from the gear train.
It performs two essential jobs:
It releases the gear train in controlled increments.
It supplies impulses to the regulating organ.
The escapement is therefore the bridge between stored power and controlled timekeeping.
Without it, the mainspring would simply unwind rapidly and the watch would stop almost immediately.
The escapement makes controlled time possible.
28. Pallet Fork
The pallet fork, sometimes called the anchor, interacts with the escape wheel.
Its pallet stones alternately lock and release the escape-wheel teeth.
At the same time, the fork transfers impulses to the balance.
The interaction is extraordinarily small and fast.
Yet it occurs thousands of times every hour.
29. Pallet Stones
The pallet fork contains tiny jewel surfaces called pallet stones.
They interact with the escape wheel.
Their hardness, geometry and surface finish are crucial because they repeatedly experience contact and sliding.
Synthetic ruby is commonly used for these jewel components.
30. Balance Wheel
The balance wheel is one of the most recognisable components of a mechanical movement.
It oscillates back and forth.
Think of it as the mechanical equivalent of a pendulum.
The balance's oscillation determines the basic rhythm of the movement.
Because of this, watchmakers often describe the balance as the heart of the mechanical watch.
31. Hairspring / Balance Spring
The hairspring, also called the balance spring, is a delicate spring attached to the balance wheel.
The balance wheel oscillates.
The hairspring provides the restoring force.
Together, the balance and hairspring form the oscillator that regulates the watch.
Their relationship is fundamental to accuracy.
Small variations in the balance spring, balance inertia, temperature, position and other factors can influence rate.
32. Balance Cock or Balance Bridge
The balance needs a stable support.
Depending on the movement architecture, this may be a balance cock or balance bridge.
It supports the balance staff and helps maintain the precise geometry required for reliable oscillation.
The visual difference can also be significant.
A traditional Swiss balance cock creates a very different aesthetic from a full balance bridge.
33. Regulator
Some mechanical movements use a regulator system to make fine adjustments to the effective length of the hairspring and therefore the rate.
Modern movements may instead use other regulation systems, such as free-sprung balances, where the effective rate is adjusted through inertia weights rather than a conventional index regulator.
This is one area where traditional and modern mechanical watchmaking can differ significantly.
34. Balance Staff
The balance staff is the tiny axle on which the balance wheel oscillates.
It is one of the most delicate components in a mechanical watch.
A sufficiently hard shock can damage a balance staff, which is why modern watches often incorporate shock-protection systems.
35. Jewels
When watch enthusiasts hear that a movement has “21 jewels” or “25 jewels,” they are not talking about gemstones decorating the watch.
They are talking about synthetic jewel bearings.
Ruby or other synthetic jewel materials are used at selected friction points, especially around wheel pivots.
They reduce friction and wear and help provide durable bearing surfaces.
Jewels are therefore functional engineering components.
Not decoration.
36. Shock Protection
Mechanical watches contain extremely delicate components.
The balance staff, in particular, can be vulnerable to impact.
Shock-protection systems allow certain critical components to move slightly under impact rather than transmitting the full force directly into a fragile pivot.
Different manufacturers have developed their own systems and names.
The principle is the same:
protect the heart of the movement.
37. Keyless Works
The keyless works is the mechanism connecting the crown to the movement's winding and setting functions.
Despite its historic name, it is fundamental to modern crown-operated watches.
It allows the crown to perform different functions depending on its position.
For example:
Normal position → winding.
First position → date correction.
Second position → time setting.
The exact arrangement varies by movement.
38. Crown Stem
The stem is the shaft connecting the crown to the movement.
When you turn the crown, the stem transfers that motion inward.
It is small, but without it the crown could not communicate with the winding and setting mechanism.
39. Motion Works
The motion works is the gearing on the dial side that converts the movement's rotational energy into the correct speeds for the hour and minute hands.
The minute hand must rotate once per hour.
The hour hand must rotate once every twelve hours on a conventional 12-hour display.
The motion works creates that relationship.
40. Cannon Pinion
The cannon pinion is a key component of the motion works.
It is associated with the minute hand and interfaces with the hour-hand gearing.
It also plays an important role in allowing the hands to be set through the keyless works.
It may be tiny, but it is critical to the display system.
41. Hour Wheel
The hour wheel carries the hour hand.
It is geared so that the hour hand makes one complete revolution in approximately twelve hours on a conventional 12-hour watch.
The relationship between the hour wheel and cannon pinion is fundamental to traditional time display.
42. Dial Train
The term dial train can refer to the system of gears on the dial side responsible for transmitting motion to the hands and certain calendar indications.
This is where mechanical energy becomes visual information.
The movement has done all the difficult work.
The dial simply tells you the result.
43. Date Wheel
A date wheel is a numbered disc, usually carrying the numbers 1 through 31.
A calendar mechanism advances the date wheel once every 24 hours.
Depending on the movement, the date may change instantaneously or gradually.
More advanced mechanisms can account for months with fewer than 31 days.
44. Date Jumper
The date jumper helps position and retain the date wheel.
It provides controlled resistance and allows the calendar mechanism to move the date into the correct position.
Again, this is a tiny component performing a surprisingly precise task.
45. Automatic Rotor
Now we reach one of the defining components of an automatic watch.
The rotor is a weighted oscillating mass.
As the wearer moves the wrist, the rotor rotates.
That motion is transmitted through the automatic winding system and ultimately winds the mainspring.
The rotor is one of the reasons an automatic mechanical watch feels so alive.
Every movement of your wrist can contribute to its energy reserve.
The watch becomes partially powered by the person wearing it.
46. Reversing Wheels
Automatic winding systems often use reversing mechanisms to convert rotor motion into useful winding motion regardless of the direction in which the rotor rotates.
Different movement manufacturers use different architectures.
The objective remains the same:
turn wrist motion into stored mechanical energy.
47. Mainspring Barrel in an Automatic Watch
An automatic movement still uses a mainspring barrel.
The rotor does not directly power the hands.
It winds the mainspring.
The mainspring stores the energy.
The gear train transmits it.
The escapement regulates it.
The balance controls the rhythm.
The hands display it.
That distinction is important.
48. Power Reserve
The power reserve is the approximate amount of time a fully wound mechanical watch can continue running without receiving additional winding energy.
A movement with a 40-hour power reserve can theoretically continue operating for around 40 hours after being sufficiently wound, although real-world performance depends on the movement and operating conditions.
Modern mechanical movements can offer much longer reserves.
Some reach several days.
Specialised movements can extend far beyond that.
49. Jewels, Again — Why the Number Matters
You may see specifications such as:
17 jewels.
21 jewels.
24 jewels.
25 jewels.
31 jewels.
The number indicates the quantity of jewel components used in the movement, not a direct ranking of quality.
A higher jewel count does not automatically mean a better movement.
Some jewels serve functional purposes.
Others may be used for additional complications or specific movement architectures.
The important question is where and why the jewels are used.
50. Movement Bridges and Finishing
Once you understand what bridges do mechanically, you can begin appreciating watch finishing.
Watchmakers and manufacturers may decorate movement surfaces through techniques such as:
Côtes de Genève
Perlage
Circular graining
Anglage
Polishing
Bluing
Geneva stripes
Black polishing
Satin finishing
These treatments can be purely decorative, functional, or both.
In high-end watchmaking, movement finishing becomes an art in itself.
51. Complications
A complication is generally a watch function beyond basic time display.
Examples include:
Chronograph.
Date.
Day-date.
GMT.
Dual time.
Moonphase.
Annual calendar.
Perpetual calendar.
Power reserve.
Alarm.
Minute repeater.
Tourbillon.
The more complications a movement contains, the more complex its architecture can become.
52. Chronograph
A chronograph is a watch with a stopwatch function.
It usually contains additional components that allow the wearer to start, stop and reset a timing mechanism.
Common visual clues include:
Pushers on the case.
Sub-dials.
Central chronograph seconds hand.
A chronograph is therefore not simply a watch with extra hands.
It contains an additional timing system.
53. GMT
A GMT or dual-time watch allows the wearer to read an additional time zone.
This is particularly useful for travellers.
A dedicated GMT hand often makes one revolution every 24 hours.
Some sophisticated GMT movements allow independent adjustment of the local hour hand.
54. Moonphase
A moonphase complication displays the current phase of the Moon.
It uses a carefully calculated gear system to approximate the lunar cycle.
The result is one of watchmaking's most poetic complications.
It turns astronomical time into something visible on the wrist.
55. Perpetual Calendar
A perpetual calendar is considerably more sophisticated.
It is designed to automatically account for different month lengths and leap years according to its programmed mechanical cycle.
This requires a highly complex calendar mechanism.
It is one of the classic demonstrations of advanced mechanical watchmaking.
56. Tourbillon
The tourbillon is one of the most famous complications in mechanical watchmaking.
It places the escapement and regulating organ within a rotating cage.
Originally conceived as a way of reducing certain positional timing errors associated with pocket watches, the tourbillon has become a major expression of high-end mechanical craftsmanship.
It is important to understand that a tourbillon is not simply “a more accurate movement.”
Its historical purpose and modern horological significance are more nuanced.
57. Minute Repeater
A minute repeater is an acoustic complication.
At the activation of a mechanism, the watch sounds the hours, quarters and minutes through small hammers striking gongs.
It is one of the most technically demanding and fascinating complications in traditional mechanical watchmaking.
Here, time is not merely displayed.
It is heard.
How All the Parts Work Together
Now we can put the entire mechanical system together.
The sequence is beautifully logical.
Step 1 — Energy is stored
The wearer winds the crown or the automatic rotor winds the mainspring.
Step 2 — The mainspring releases energy
The mainspring gradually attempts to unwind.
Step 3 — The barrel transfers the energy
The barrel drives the gear train.
Step 4 — The gear train transmits the power
Centre wheel, third wheel, fourth wheel and other gears carry the energy toward the escapement.
Step 5 — The escapement controls the release
The escape wheel and pallet fork release the energy in precisely controlled increments.
Step 6 — The balance oscillates
The balance wheel and hairspring create the regulating rhythm.
Step 7 — The motion works translates the rotation
The gear system on the dial side drives the hour and minute hands at their correct speeds.
Step 8 — The dial displays the result
The wearer sees the time.
This entire process happens continuously while the watch is running.
That is the essence of mechanical horology.
The Mechanical Watch in One Sentence
If you had to explain the entire mechanism in a single sentence:
A mechanical watch stores energy in a mainspring, transmits that energy through a gear train, regulates its release through an escapement and balance, and converts the resulting motion into readable time through the hands.
That is the entire philosophy of mechanical watchmaking.
A Simple Watch Anatomy Cheat Sheet
| Part | What it does |
|---|---|
| Case | Protects the movement and dial |
| Bezel | Surrounds the crystal; may provide a function |
| Crystal | Protects the dial |
| Dial | Displays time and other indications |
| Hands | Indicate the time |
| Crown | Winds and/or sets the watch |
| Stem | Connects crown to movement |
| Lugs | Connect case to strap/bracelet |
| Strap | Secures watch to wrist |
| Bracelet | Metal wristband |
| Clasp | Secures bracelet/strap |
| Caseback | Seals the rear of the watch |
| Mainplate | Foundation of the movement |
| Bridges | Support movement components |
| Mainspring | Stores mechanical energy |
| Barrel | Houses mainspring |
| Gear train | Transmits energy |
| Centre wheel | Drives minute-hand system |
| Third wheel | Transfers energy through train |
| Fourth wheel | Commonly drives seconds |
| Escape wheel | Interfaces with escapement |
| Pallet fork | Controls escape-wheel release |
| Balance wheel | Oscillates to regulate time |
| Hairspring | Controls balance oscillation |
| Jewels | Reduce friction at selected pivots |
| Rotor | Automatically winds mainspring |
| Motion works | Drives hour/minute hands |
| Date wheel | Displays date |
| Complications | Add functions beyond basic timekeeping |
The Parts You Can See vs. The Parts You Cannot
A watch is effectively divided into two worlds.
The visible world consists of the case, crystal, bezel, dial, hands, crown, lugs, strap and bracelet.
The mechanical world lives underneath.
That hidden world contains the mainspring, barrel, gear train, escapement, balance, hairspring, jewels, bridges and winding system.
The first world tells you what the watch looks like.
The second tells you why it works.
And that distinction is at the heart of watch enthusiasm.
Why Mechanical Watches Fascinate Us
A smartphone can tell you the time with extraordinary precision.
An inexpensive quartz watch can do the same.
So why do people still care about mechanical watches?
Because mechanical watchmaking represents something increasingly rare.
Human-scale engineering.
A mechanical movement does not need software updates.
It does not need a processor.
It does not need a touchscreen.
It needs energy, geometry, precision and maintenance.
Hundreds of tiny components work together inside a case smaller than the palm of your hand.
A spring stores energy.
Gears transfer it.
An escapement controls it.
A balance oscillates.
Jewels reduce friction.
Hands move.
And time appears.
That is why a mechanical watch can be considered much more than an instrument.
It is a miniature mechanical ecosystem.
The Watch Is More Than the Sum of Its Parts
A watch enthusiast eventually stops seeing a watch as merely a dial and hands.
The crown becomes a winding interface.
The seconds hand becomes the visible consequence of an escapement.
The exhibition caseback becomes a window into a gear train.
The rotor becomes stored energy in motion.
The ticking sound becomes the audible result of the escapement.
The balance becomes the heartbeat.
And the entire watch becomes a conversation between physics, engineering, craftsmanship and design.
That is the beauty of horology.
Final Thoughts
Every watch tells time.
But every watch tells a different story about how humanity learned to measure it.
From the simplest quartz movement to the most elaborate hand-finished mechanical calibre, the underlying ambition remains remarkably consistent:
to transform energy into rhythm, and rhythm into time.
The next time you look at a watch, look beyond the dial.
Look at the crown.
Notice the case construction.
Study the hands.
Examine the lugs.
Turn it over.
If it has an exhibition caseback, watch the balance oscillate.
Look at the rotor.
Follow the gears.
Find the escapement.
And remember what is happening inside.
A tiny spring is releasing energy.
A series of wheels is transmitting it.
An escapement is controlling it.
A balance is regulating it.
And somewhere in that extraordinary miniature machine, hundreds of carefully engineered parts are working together to answer one of humanity's oldest questions:
What time is it?
That is the anatomy of a watch.
And that is where the fascination with horology truly begins.
Editorial Note
The terminology and functional descriptions in this guide follow established horological terminology. The exact construction of a movement varies considerably by calibre, manufacturer and movement architecture. Not every watch contains every component described here, and some modern movements combine, replace or redesign traditional components. The Federation of the Swiss Haute Horlogerie identifies six broad functional groups in a mechanical movement — winding mechanism, barrel, wheel train, escapement, regulator and display — while manufacturers such as NOMOS and Hamilton describe additional movement components and automatic winding systems.
Suggested SEO Title
Watch Parts Explained: The Complete Anatomy of a Watch
Suggested Meta Description
Discover the complete anatomy of a watch, from the case, crystal, crown and dial to the mainspring, gear train, escapement, balance wheel, rotor and complications.
Suggested URL Slug
watch-parts-anatomy-how-a-watch-works
Suggested SEO Keywords
watch parts, parts of a watch, watch anatomy, watch parts explained, mechanical watch parts, mechanical watch anatomy, automatic watch parts, automatic watch movement explained, watch movement parts, parts of mechanical watch movement, how a mechanical watch works, how automatic watches work, mainspring, balance wheel, hairspring, escapement, pallet fork, escape wheel, gear train, watch rotor, watch crown, watch case, watch dial, watch crystal, watch bezel, watch hands, watch caseback, watch jewels, watch complications, horology, mechanical watch, automatic watch, watchmaking, Indian horology, Calcutta Watch Company, CWC
Suggested Hashtags
#WatchAnatomy #WatchParts #MechanicalWatch #AutomaticWatch #Horology #Watchmaking #WatchMovement #MechanicalMovement #WatchEnthusiast #WatchCollector #Mainspring #BalanceWheel #Escapement #WatchComplications #IndianHorology #CalcuttaWatchCompany #CWC #HeritageOnWrist
